AxioCam ERc 5s from Carl Zeiss Documentation Made Easy

Performance in the most compact form: with AxioCam ERc 5s, Carl Zeiss expands the proven AxioCam family with a real power pack that provides the perfect solution for documentation, observation, and stand-alone use.

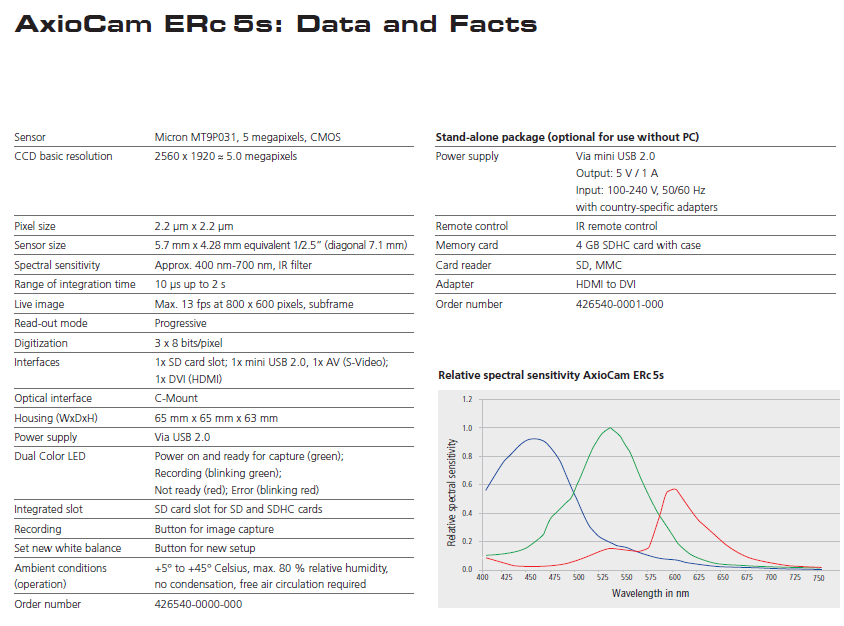

AxioCam ERc 5s: Data and Facts

Sensor Micron MT9P031, 5 megapixels, CMOS

CCD basic resolution 2560 x 1920 5.0 megapixels

Pixel size 2.2 μm x 2.2 μm

Sensor size 5.7 mm x 4.28 mm equivalent 1/2.5” (diagonal 7.1 mm)

Spectral sensitivity Approx. 400 nm-700 nm, IR filter

Range of integration time 10 μs up to 2 s

Live image Max. 13 fps at 800 x 600 pixels, subframe

Read-out mode Progressive

Digitization 3 x 8 bits/pixel

Interfaces 1x SD card slot; 1x mini USB 2.0, 1x AV (S-Video);

1x DVI (HDMI)

Optical interface C-Mount

Housing (WxDxH) 65 mm x 65 mm x 63 mm

Power supply Via USB 2.0

Dual Color LED Power on and ready for capture (green);

Recording (blinking green);

Not ready (red); Error (blinking red)

Integrated slot SD card slot for SD and SDHC cards

Recording Button for image capture

Set new white balance Button for new setup

Ambient conditions

(operation)

+5° to +45° Celsius, max. 80 % relative humidity,

no condensation, free air circulation required

Order number 426540-0000-000
