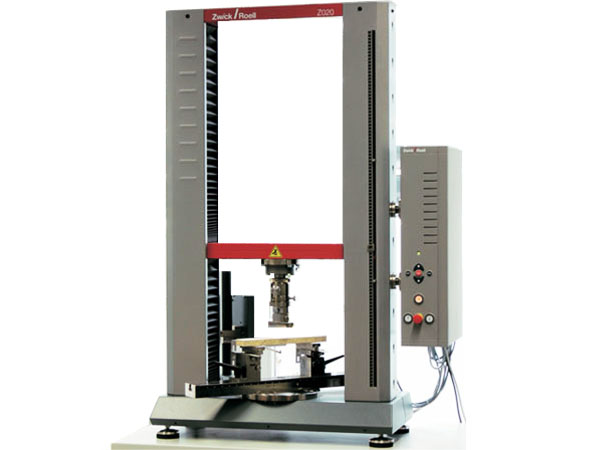

Zwick电子万能试验机Proline

产品编号: Zwick电子万能试验机Proline系列
产品型号: Proline系列
所属类别: 万能试验机岛津zwick
所属品牌: zwick
所属用途: 抗拉强度
应用领域: 金属

出品单位:: Zwick电子万能试验机Proline系列操作简便,外形简约的测试系统,用

BAHENS仪器为您提供Zwick电子万能试验机Proline系列的方案介绍：

Zwick电子万能试验机Proline系列操作简便，外形简约的测试系统，用于零部件或原材料标准测试。对于Proline系列产品，Zwick能提供快速的交货时间。

德国Zwick电子万能试验机Proline系列的精度高吗

试验机采用由Zwick Roell集团制造的高精度力传感器Xforce，所有Xforce结构为旋转对称或轴向对称设计，灵敏度高，并能承受很高的横向载荷；

德国Zwick电子万能试验机Proline系列的速度范围在多少

依照型号，试验速度范围0.0005 to 1000 mm/min，而且为满载满速闭环控制；可选择位置控制、力控制或应变控制模式；同时，不同的型号及使用的范围，可根据客户的要求而进行选配。

Proline系列的试验力范围在多少？

ProLine系列试验力为100 kN，测试空间高度范围为1050 mm - 1370 mm；如需更多的详细技术，请致电本公司。

Proline系列的其它特点：

·ProLine可与标准PC或笔记本电脑，无需特殊配置；也可以选用操作面板控制，这时无需PC；

·ProLine可以应用智能测试软件 testXpert®和testXpert® II；

·所有测量通道为同步采集，传输频率为320 kHz；

·传感器自动识别系统，并读取传感器设置，如标定参数、试验力限位等。

Range of application

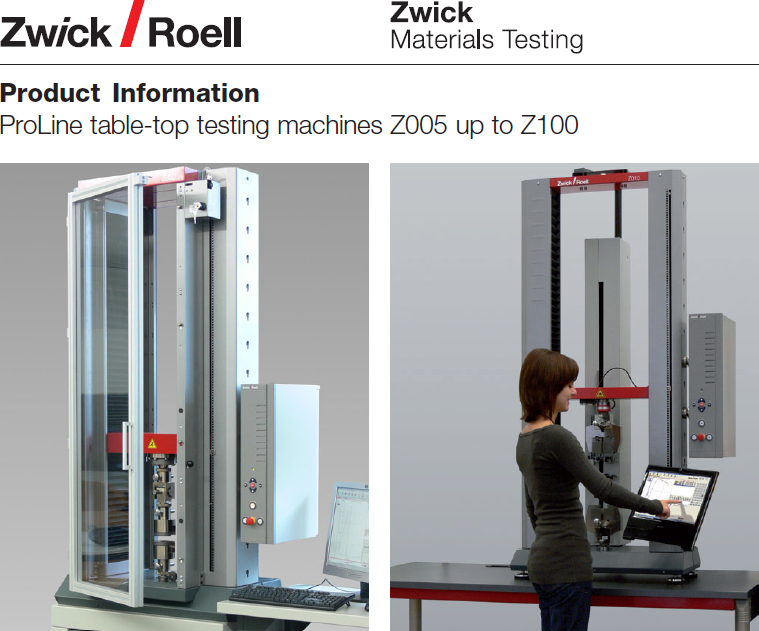

The ProLine range of testing machines are designed primarily for standardized testing of materials and components. In combination with the intuitive software testXpert® II,ProLine machines are quick and very easyto operate.

Advantages/Characteristics

• High value, twin column load frame with precise crosshead guidance via steel columns

• Designed, developed and manufactured in Germany according to the highest quality standards guarantees robust and durable operation

• Zwick drive systems can be regularly used at maximum speed and 110% of maximum load

• Zwick digitally controlled drive systems can be cycled continuously up to full load and full speed without any waiting time between tests

• ProLine machines use patented Xforce load cells which are designed and manufactured by Zwick to offer an expanded force measurement range and extremely high resistance to overloads and offset loading.

• The ProLine uses a digital controller, testControl,which is vertically mounted on the machine frame to prevent ingress of liquids, and conductive particles from test specimens coming into contact with the electronic systems

• Data sampling rate 320 kHz and 100 Hz data acquisition rate at the PC. Load and strain channels are fully synchronized

• Zwick‘s safety concept ensures that your operators are safe. All relevant standards are fully complied with

• The ProLine operates with standard PCs or laptops as it requires no special interface cards

• A high standard of comfort and user ergonomics is created in synergy with the test software testXpert® II

• Optional combined with a touch-PC with voice prompts, which is directly mounted on the machine and can be adjusted individually, testXpert® II has an efficient and ergonomic navigation - especially for simple applications a significant assistance

• ProLine products are available with only 2 week delivery when ordered with standard components
